Huepar S04CG-L

With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision. Shop Huepar cross line laser level, complete your projects more efficiently and with greater ease.

S04CG-L 4 x 360° Green Beam Floor Cross Line Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
• Number of Lines: Two 360° horizontal floor laser lines & Two 360° Vertical laser lines
• Laser Wavelength: 505-520nm
• Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
• Leveling/Compensation Range: ±3.5°
• Working Distance (Line): 130Ft (100 LUX), 200Ft. with Huepar Receiver LR-5RG/LR-6RG

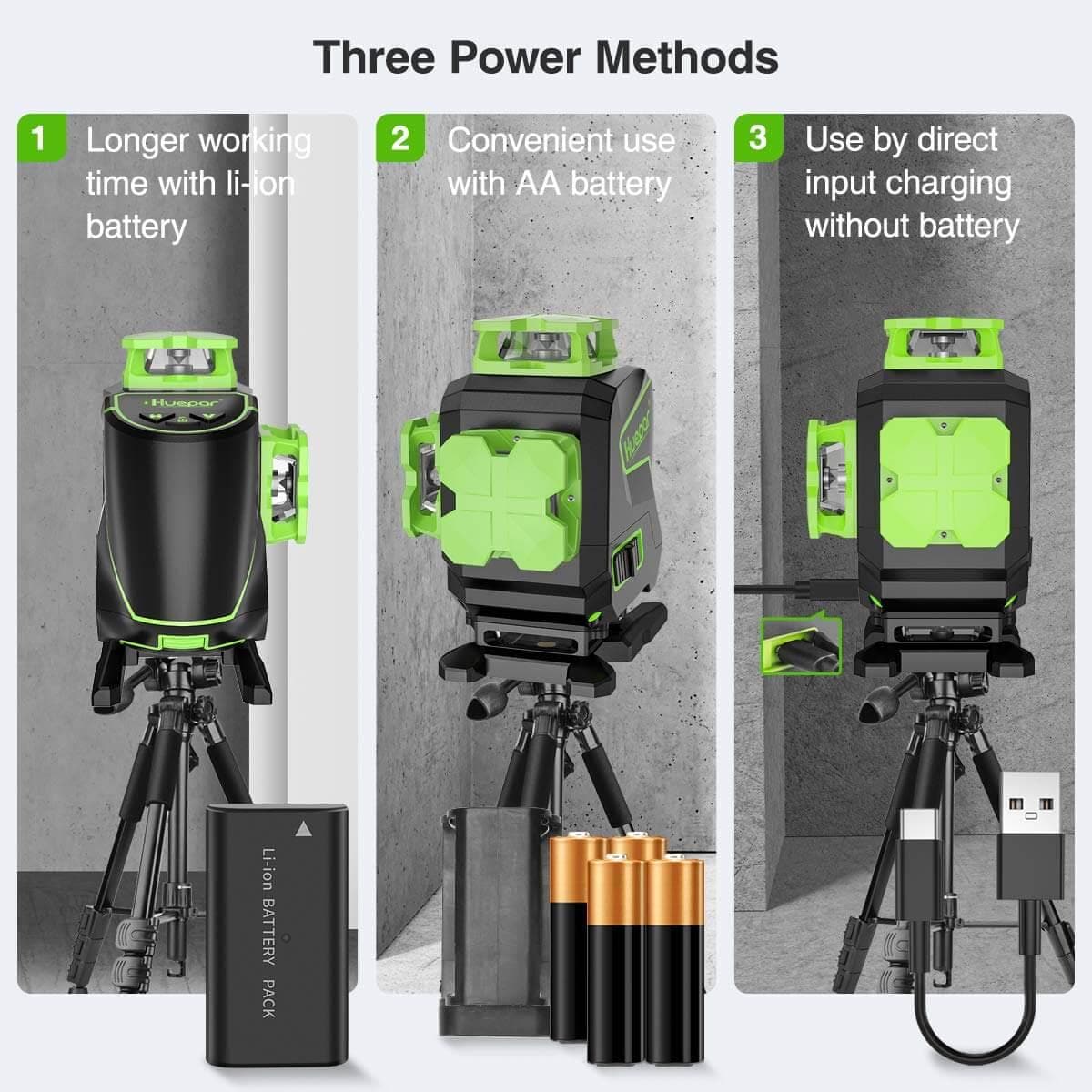

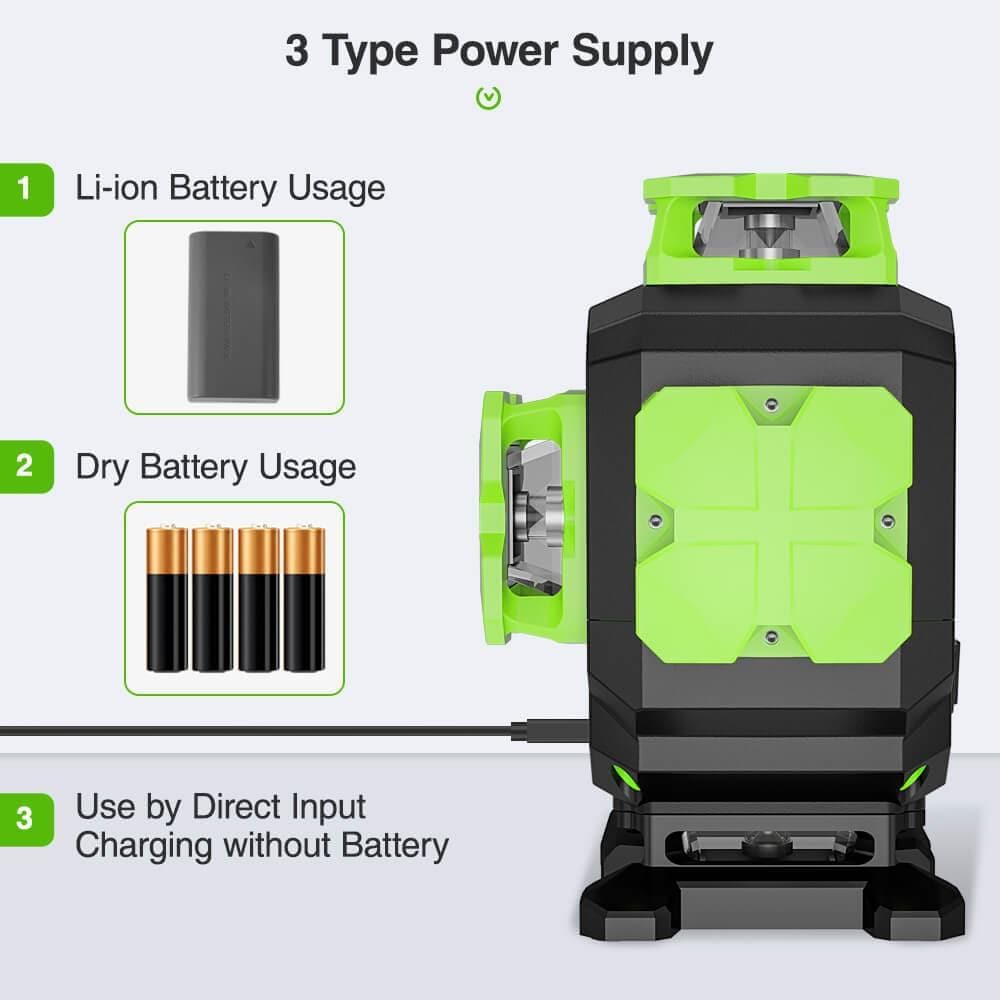

• Power Source: Li-ion battery & 4×AA (LR6) batteries
• Operating Time: with Lithium Battery: 5 hours with all laser beams on; with AA Batteries: 0.5 hours with all laser beams on
• IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

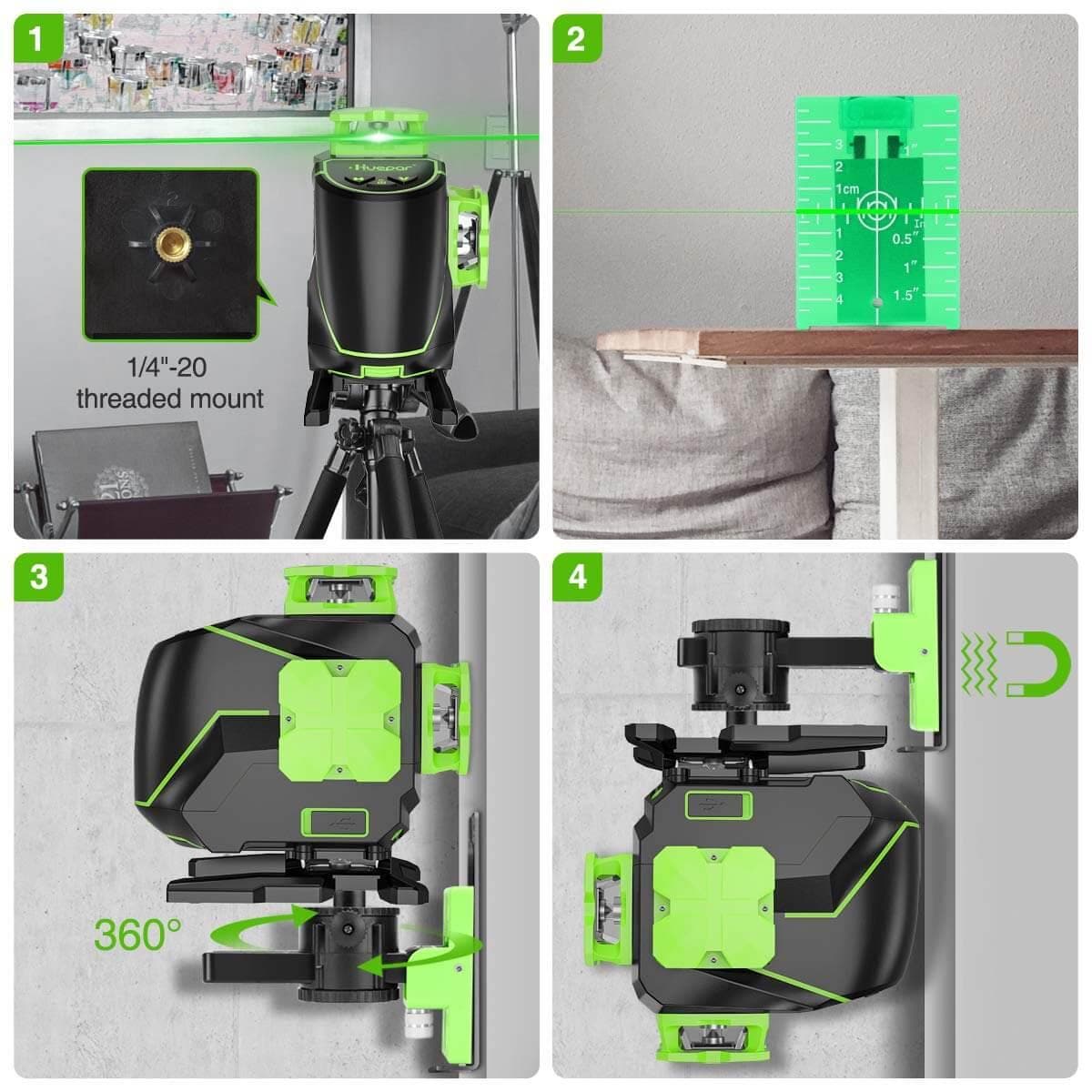

• Mount Size: 1/4"-20

WARNING: Do not point the laser beam directly into the eyes. The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions. The eye protection is usually secured by aversion reactions and blink reflex.

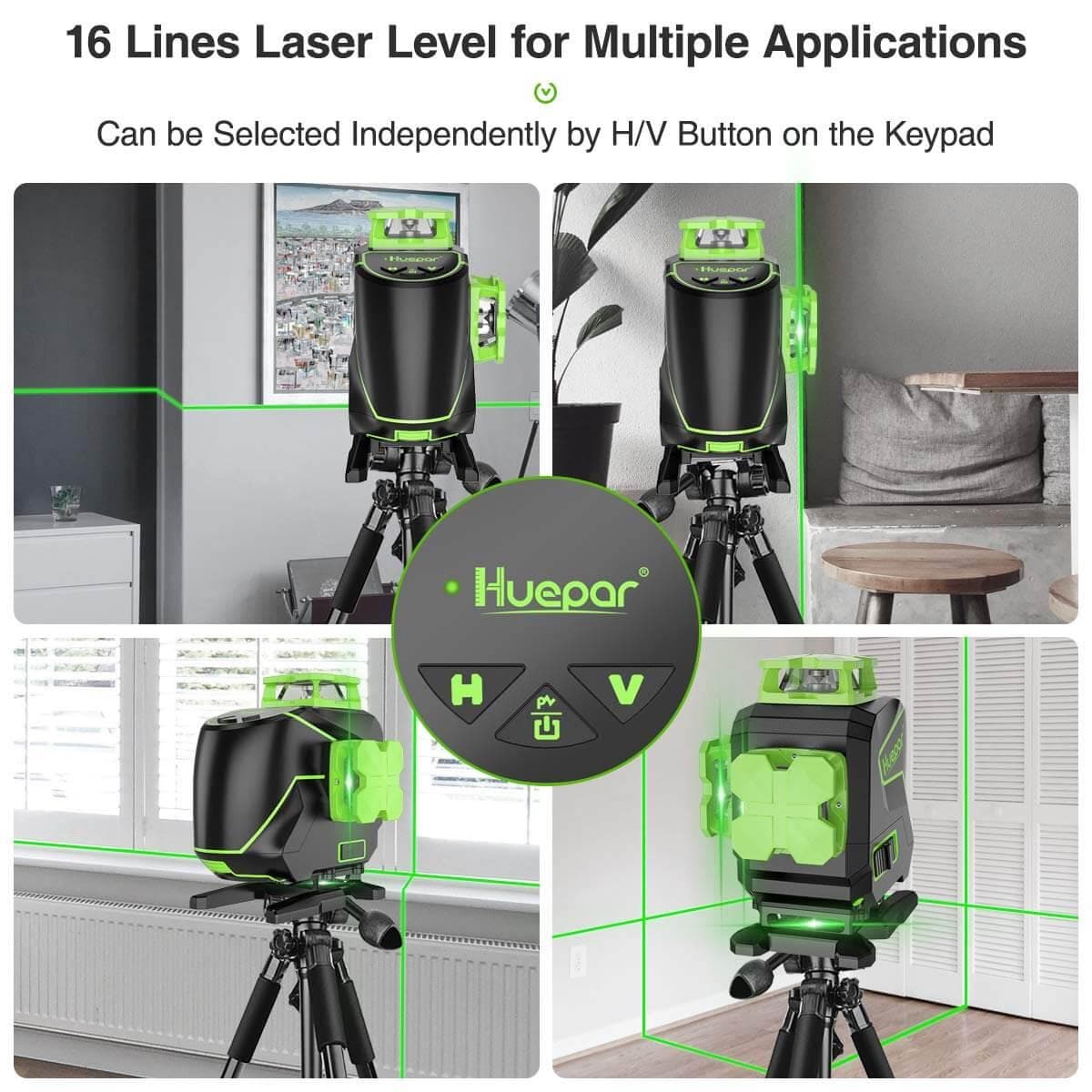

4 X 360°Laser Lines & Line Switching :

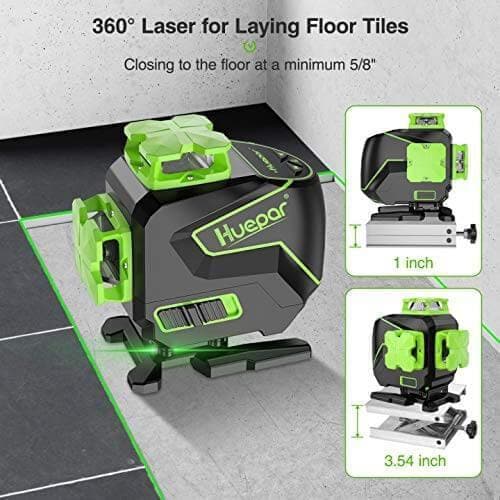

• This cross line laser level provides four 360 planes of laser light. The top 360° horizontal line can be used for ceiling installation. The 360° floor horizontal line is for tiling installation.
• Two 360° vertical lines cross at 90°angles makes user quickly visualize and finish square layout.
• Short press the "H" and "V" buttons on the keypad to switch the Horizontal and Vertical laser lines separately.
• The four laser lines can be selected individually depends on job site applications.
• Huepar S04CG-L laser level is a complete tool to cover the floor, wall, ceiling all around the room.

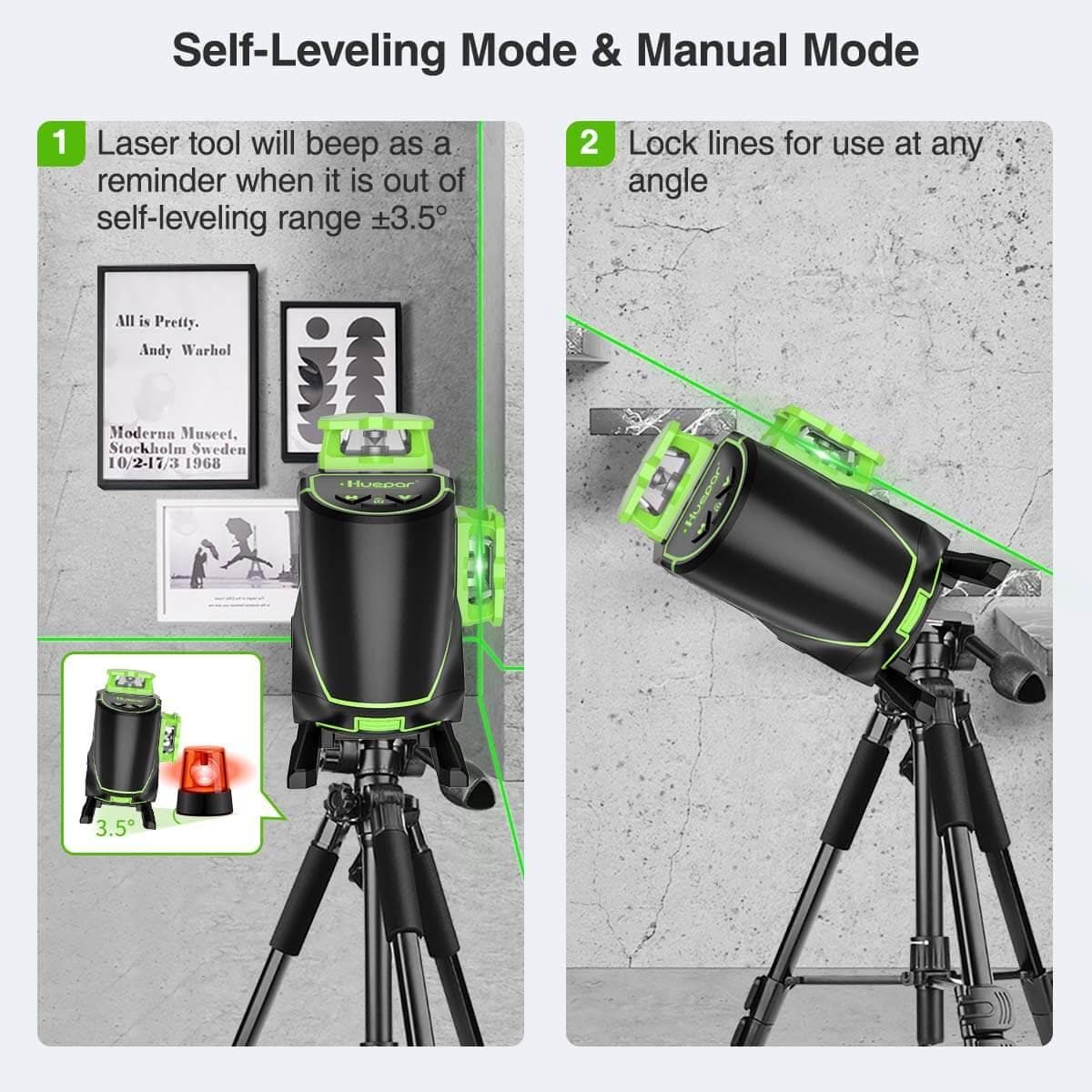

Self-leveling mode&Manual mode

Self-leveling mode:

Once the pendulum unlocked, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±3.5°.

Manual mode:

When the pendulum is in the locked position, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

In manual mode, when all laser lines are switched off, the laser tool will shut OFF automatically after about 5 minutes of inactivity.

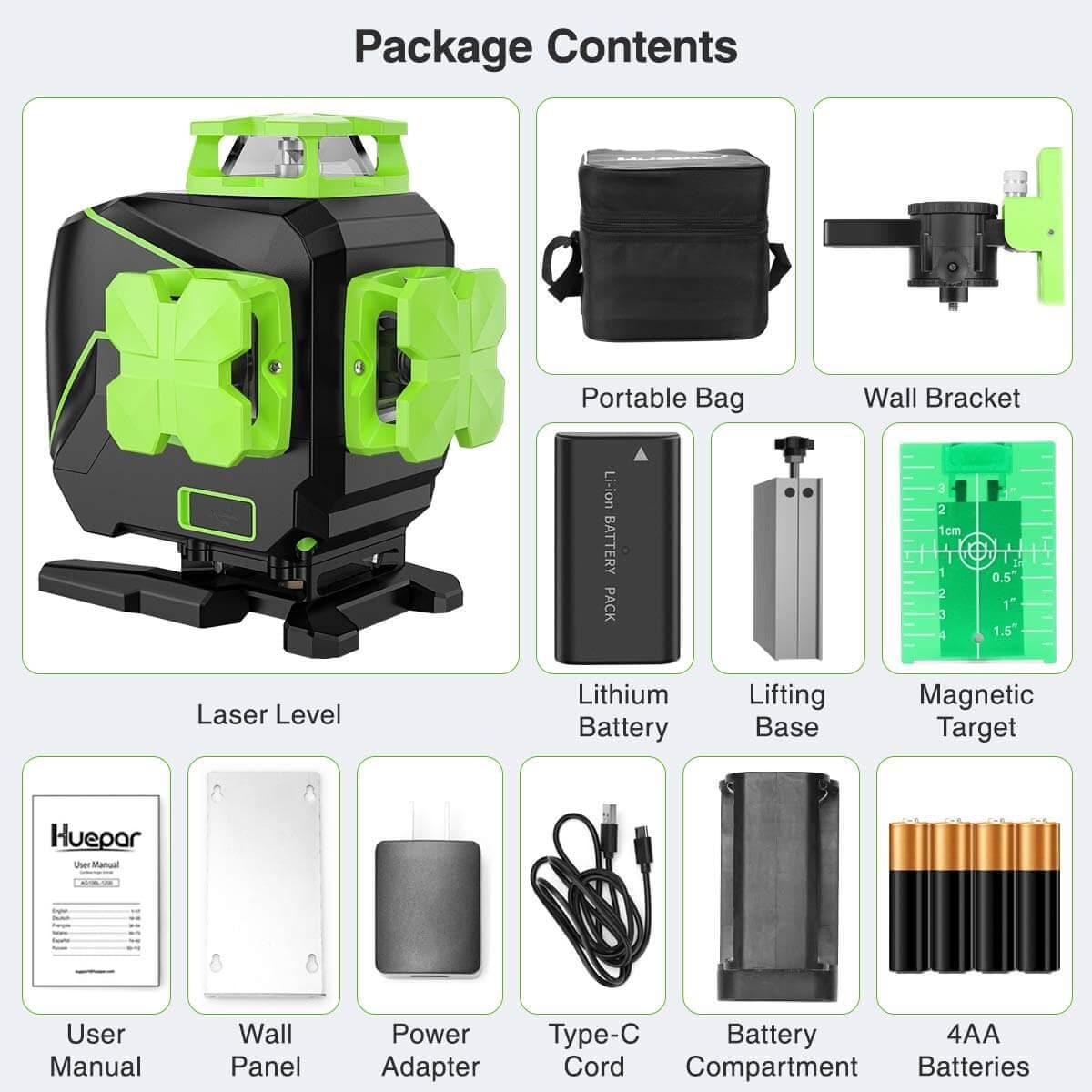

Cross Line Laser Level Package Contents

• 1 x 4D Green Tiling Laser Level S04CG-L
• 1 x Rechargeable Li-ion Battery
• 1 x Power Adapter& Type-C cord
• 4 x AA (LR6) Batteries & 1 x AA Battery Holder
• 1 x Magnetic Bracket
• 1 x Lifting Base
• 1 x Steel Sheet
• 1 x Laser Target Plate
• 1 x Laser Level User Manual
• 1 x Portable Bag

1 x S04DG-L
1 x 7.4V / 2600mAh Li-ion battery
1 x magnetic bracket
1 x type-C power cord
1 x power adapter
1 x target plate
1 x metal panel
1 x AA battery holder
4 x AA alkaline batteries
1 x user manual
