Huepar P04CG

• Huepar is committed to provide Best-in-Class service to our customers- 24/7 Service Team（response in 24hrs & solution in 48hrs）; Lifetime Customer Support(hassle-free of exceeding the warranty); Worldwide Maintenance Center( your product can be repaired or replaced faster ).

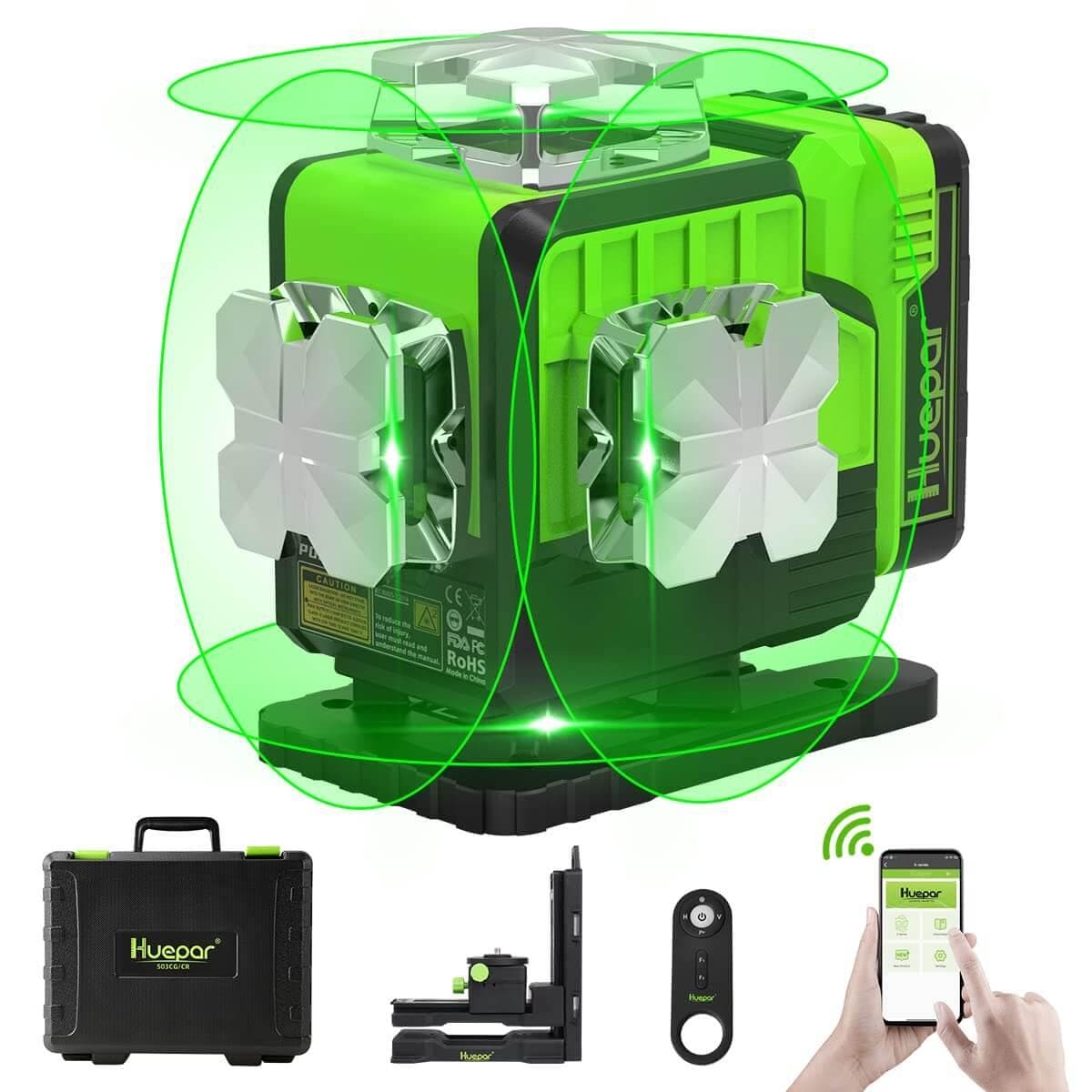

• 4x360°GREEN BEAM&BLUETOOTH TECH:The laser level P04CG projects Clearly visible 2x360° Horizontal and 2x360°Vertical laser lines. Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone and remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously.

• LARGE CAPACITY LI-ION BATTERY&TYPE-C PORT: Huepar P04CG Laser Level adopted 10.8V / 2600mAh Li-ion battery and provides 7 hours running time. The Li-ion Battery can be charged separately and quickly released and installed.The four power indicators on the battery allow users to know the charging status. This laser tool can be used by direct input charging when release out the battery. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.

• MULTIFUNCTIONAL LASER TOOL & PULSE MODE: In self leveling mode, this laser level tool will self-level within 4°. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.The green laser level offers a working range up to 40 m/130 Feet with an accuracy of ±3 mm at 10 m (±1/9 inch at 33 Feet). The outdoor pulse mode helps extend the laser range up to 60 m/200 ft with Huepar laser receiver in bright light or outdoor conditions.

• EASY USE & DURABLE DESIGN: The four green laser lines can be selected individually by separate buttons on the keypad. The laser tool offers 1/4" mount thread to be fixed on tripod or bracket. Strong magnetic bracket allows for attachment to metal track and steel. The bracket also has 1/4"and 5/8" mounting threads to suit for different tripod threads. Metal laser window withstands tough worksite conditions. The hard carry case is for much more convenience to carry and store the laser tool.

• KIT CONTENTS & WARRANTY:IP54 waterproof design protects the unit from water splashes, dust and construction debris. You will get: 1x laser level, 1x Li-ion battery,1xBluetooth remote control,1x magnetic bracket,1xhard carry case, 1x Steel Sheet,1xLaser Target Plate,1xcharger. In addition，we provide a 24-Month after-sale service, lifetime technical support. Please contact us freely if you have any concerns.

With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision.

Huepar New Generation 16 Lines Green Laser Level Self Leveling ideal for alignment, leveling and squaring needs for Construction.

P04CG 4D Green Laser Level Specifications:

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-520nm

Horizontal/Vertical Accuracy: ±3 mm at 10 m/±1/9 inch at 33Ft.

Leveling/Compensation Range: ±4°

Working Distance (Line): 40m/130Ft (100 LUX), 60m/200Ft. with Huepar Receiver LR-5RG/LR-6RG

Operating Time with Li-ion Battery: 7 hours with all laser beams on

Power Source: 10.8V / 2600mAh Li-ion battery

Package: Hard Carry Case

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)

Mount Size: 1/4"-20

WARNING: Avoid direct exposure of the laser beam to the eyes.

Bluetooth & Remote control

Bluetooth connectivity enables to control the setup of the laser from across the room with Huepar App on smart phone or remote control. The App and remote control can switch ON/OFF the laser lines and pulse mode, select the laser planes. Huepar App also provides out-of-level alarm. The laser tool can connect two Bluetooth devices simultaneously. With the remote control, your alignment job becomes simple and fast.

Large capacity Li-ion battery&Two Power Methods

10.8V / 2600mAh Li-ion battery and provides 7 hours running time.

The Li-ion battery pack can be quick to release and install is very easy to use.The Li-ion Battery can be charger separately and the four power indicators on the battery allow users to know the charging status. When taking out the battery, the cross line laser level can be used at the job site by plugged in directly. With Type-C charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc. Charging protection help prevent the tool from overcharge.

Multifunctional laser tool

Huepar Laser Level have two horizontal 360° plane, two vertical 360° planes, 16 laser lines, which can cover the floor, walls and ceiling all around the room. Horizontal lines and vertical lines cross at 90°angles help you to visualize quickly and finish square layout. Each button on this laser level corresponds to a single laser line, you can easily choose to turn on/off any laser line.

Self-leveling mode&Manual mode

Self-leveling mode:

When the pendulum slides to the“ ON” position, the self-leveling mode is enabled. The laser beam will beep as well as the laser beam blink fast when the tool is out of self-leveling range ±4.

Manual mode:

When the pendulum is in the middle position, the laser tool can be placed for use at any angle.

The laser beam will blink every 3-5 seconds to remind you it's not self-leveling now.

The locked icon will be displayed on Huepar APP to remind user it is in manual mode now.

Metal laser window

Over-molded metal laser window with IP54 water/dust resistance withstands tough job site conditions and can be removed and replaced with a screwdriver.

The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.

Multi-function magnetic bracket

This green line laser offers 1/4"-20 and mounting threads for being fixed on tripod or magnetic bracket. The strong magnetic bracket allows for quick positioning to metal surfaces helping hang the laser level for wall applications and can be rotated to the required angle. The magnetic base also has 1/4"-20 & 5/8"-11 mounting threads to suit for different tripod threads.

Pulse Mode

When connecting with Huepar APP and the Bluetooth Remote Control, the pulse mode can be switched ON/OFF via APP. Pulse mode extends the working range up to 200Ft in brighter working conditions when using with Huepar Line Laser Receiver. It is compatible with Huepar LR-6RG / LR-5RG Laser Detector only. Note: Keep the pulse mode on when using with a receiver.

Package Contents:

1 x Huepar P04CG 4D Cross Line Laser Level

1 x Bluetooth Remote Control

1 x Rechargeable Li-ion Battery

1 x Power Adapter&1 x Type-C cord

1 x Magnetic Bracket&1 x Steel Sheet

1 x Laser Target Plate

1 x User Manual

1 x Hard Carry Case

1 x Huepar P04CG
1 x Bluetooth Remote Control
1 x Rechargeable Li-ion Battery
1 x Power Adapter
1 x Type-C cord
1 x Magnetic Bracket
1 x Steel Sheet
1 x Laser Target Plate
1 x Hard Carry Case
1 x User Manual
