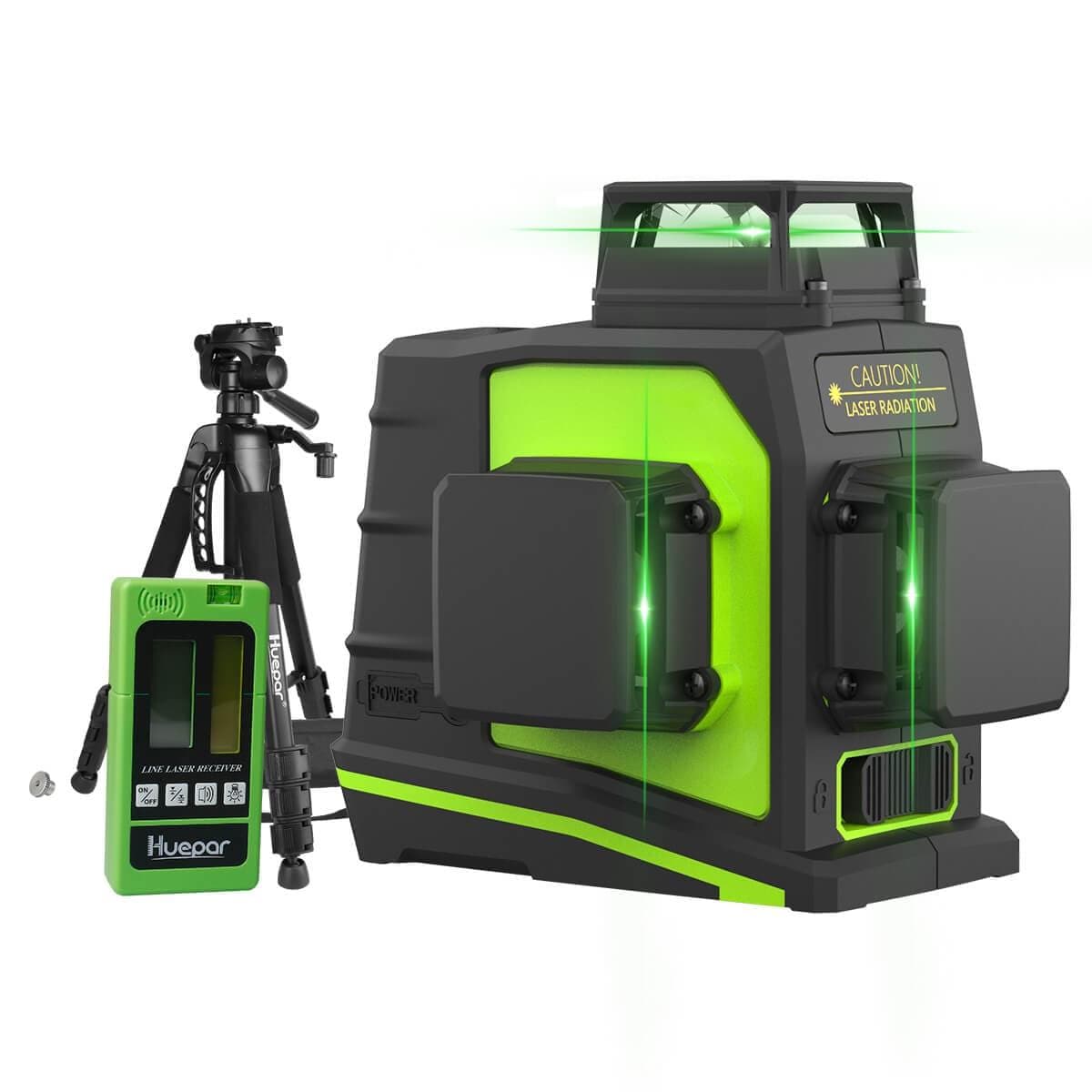

Huepar GF360G

• FULL LAYOUT WITH 3 x 360 LINE LASER: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. Two vertical lines cross at 90° angles makes user quickly visualize and square the layout. With our smart pendulum system, this green self leveling laser and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.



• DUAL POWER METHODS&USB CHARGING PORT: Huepar GF360G green self leveling laser employed a large capacity of 3.7V / 5200mAh Li-ion Battery and provides long running time. The Li-ion Battery can be recharged in the battery charger (included in the package) separately as well as in the laser tool. When taking out the battery, the cross line laser level can be used at the job site by plugged in directly. The power indicator on the charger and keypad allow users to know the charging status.



• BRIGHTER GREEN LASER&OUTDOOR PULSE MODE: This green self-leveling laser level adopted the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. Under same light condition, the green beam is twice bright as the red laser with a working range up to 130 feet(100LUX) of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode helps extend the laser range up to 200ft with Huepar Line Laser Receiver LR-6RG/LR-5RG in bright-light or outdoor conditions.



• MULTIPLE INSTALLATION METHODS: This green self leveling laser level offers 1/4"-20 and 5/8"-11 mounting threads for being fixed on tripod or mounting pole. Equipped with a magnetic pivoting base, the laser tool can be rotated to the required angle. The magnetic base also has 1/4"-20 & 5/8"-11 mounting threads to suit for different tripod threads. Strong magnets on the base allows for attachment to metal track and steel. In addition, the laser covers can be removed and replaced with a screwdriver.



• DURABLE DESIGN&PACKAGE CONTENTS: IP54 water/dust-proof ensures you work well under hazardous working conditions. Protected by TPR soft rubber on all sides makes the laser level shock resistant, wear resistant and impact resistant. Package includes self leveling laser level, Li-ion battery, battery charger, magnetic bracket, USB power cord, power adapter, laser target plate, portable bag, user manual. One-year warranty can be extended to two years if registered as a royal customer.





With advanced laser level technology, Huepar is committed itself to providing solutions for a wide variety of applications of greater accuracy and precision. Shop self leveling laser level at Huepar shop, complete your projects more efficiently and with greater ease.

GF360G 3 x 360 Green Laser Level Specifications:

• Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
• Laser Wavelength: 505-520nm
• Leveling Accuracy: ±1/9 inch at 33Ft
• Horizontal/Vertical Accuracy: ±1/9 inch at 33Ft.
• Leveling/Compensation Range: ±4°
• Working Distance: 130Ft (100 LUX), 200Ft with Huepar Line Laser Receiver
• Operating Time: 6 hours with all laser beams on
• Power Source: Li-ion battery
• IP Rating: IP54
• Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
• Mount Size: 1/4"-20 and 5/8"-11



WARNING: Avoid direct exposure of the laser beam to the eyes.



3 x 360° Multiple Line Switching Functions

• This self leveling laser level projects three green beam laser lines in 360° laser planes – one horizontal and two vertical, so that users can accurately and quickly execute level, align, square and plumb applications.

• Users can employ the three independent 360° planes independently or together with the press of a button.



Self-leveling Mode:

• When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.
• The laser beam will flash when the tool is beyond self-leveling range 4° ± 1°.

Manual Mode:

• When the pendulum locked, the laser tool can be placed for alignment at any angle.
• The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.



Pulse Mode

• Turn ON the pulse mode: After power ON, short press the independent button "P" on the keypad to turn on the pulse mode.
• Pulse mode extends the working range up to 200Ft. in brighter working conditions when using with Huepar Line Laser Detector (ASIN: B07L6FP48S).
• When the pulse mode is activated, the laser beams will become dimmer.
• It is compatible with Huepar LR-6RG / LR-5RG Line Laser Detector only.
• Keep the pulse mode on when using with a receiver.



Dual Power Methods

• This laser level adopts rechargeable large capacity Li-ion battery.
• The level tool can be used at job site by plugged in directly even if take out the battery.
• Users can charge the battery independently with the battery charger.
• With USB charging port, the laser level can also be charged by phone, laptop, power bank, car charger, etc.



Multiple Ways of Positioning

• This laser level comes with 180°Magnetic L Mount with tripod thread of 5/8-11-Inch and 1/4-20-Inch that has strong magnets to attach to steel studs, useful for turning it around at 180 degree horizontally and being fixed on tripod.
• Two Mount Sizes: 1/4"-20 and 5/8"-11 mounting threads for temporarily fastening in place or being fixed on tripod.



Easy to Use

• Green Target Plate increases the visibility of the laser beam.
• Over-molded laser window withstands hazardous job site conditions and can be removed and replaced with a screwdriver.
• IP54 water/dust resistance ensures you work well in hazardous working conditions.

Wide Applications

• This laser level is great for various leveling and layout applications.
• One 360°horizontal and two 360°vertical planes enable users to cover the floor, wall, ceiling all around the room.
• The line laser tool can work with Huepar multiple accessories such as AT2 rotating adapter, PV10+ fine-tuning bracket, LP36 telescoping pole and M3Y heavy duty tripod(Not Included in the Package), which makes job much easier.

Kit Contents
