Huepar 3x360 Laser Level, Li-ion Battery & Hard Carry Case included B03 CG

Huepar

200 items left


WHY HUEPAR --- We Continue To Commit ACTION


-Adopt the latest technology to take the product quality to the next level
-Consistently provide on-time services to our customers
-Train and develop talented people with strong work ethics to deliver effective performance
-Improve and enhance engineering designs to ensure product performance
-Optimize management systems and increase productivity
-Never forget our customer needs

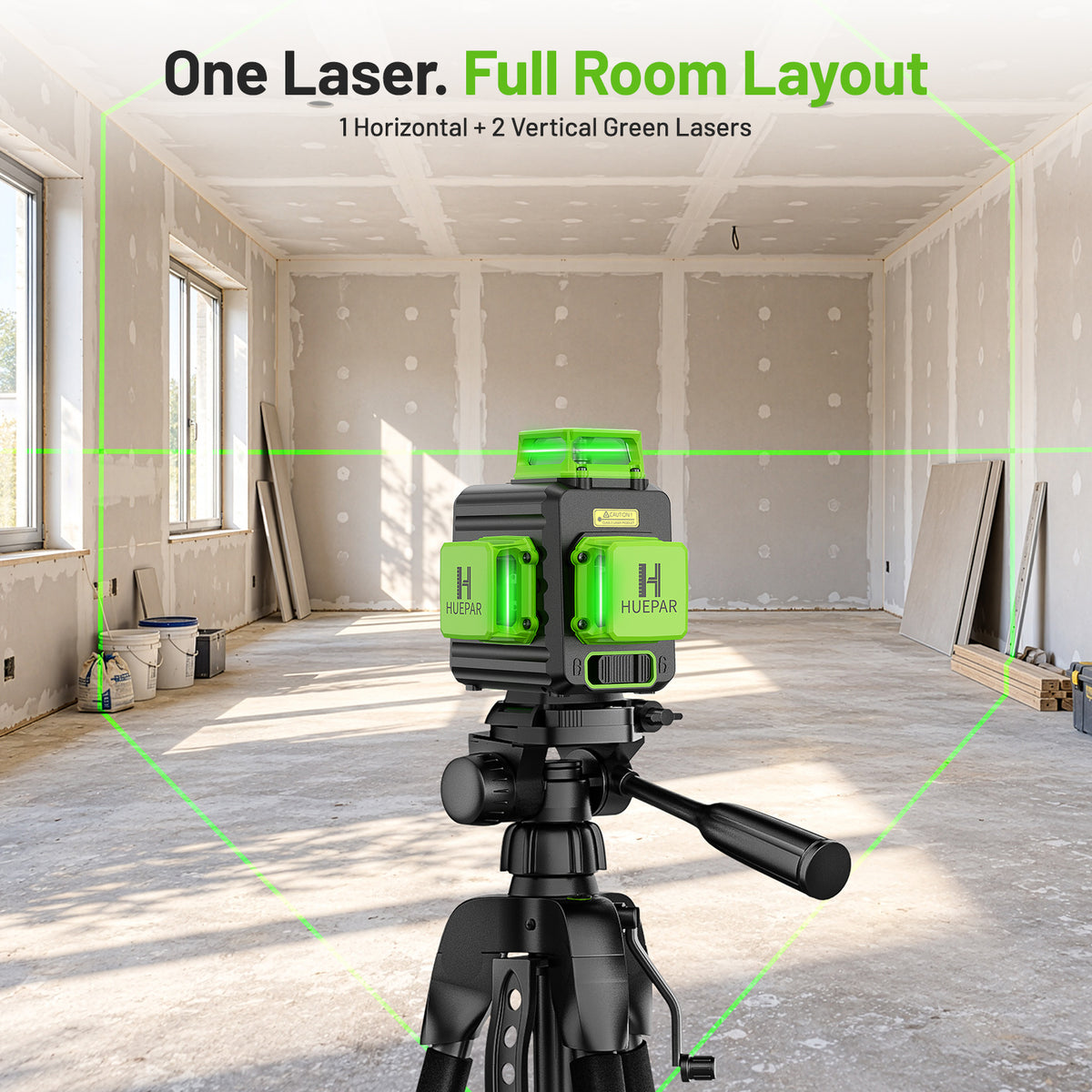

  • 【Fully Layout with 3 x 360° Line Lasers】: One 360° horizontal and two 360° vertical planes enable users to cover the floor, wall, ceiling all around the room. The three laser lines can be selected individually depends on job site applications. With our smart pendulum system, this laser level tool self-levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.

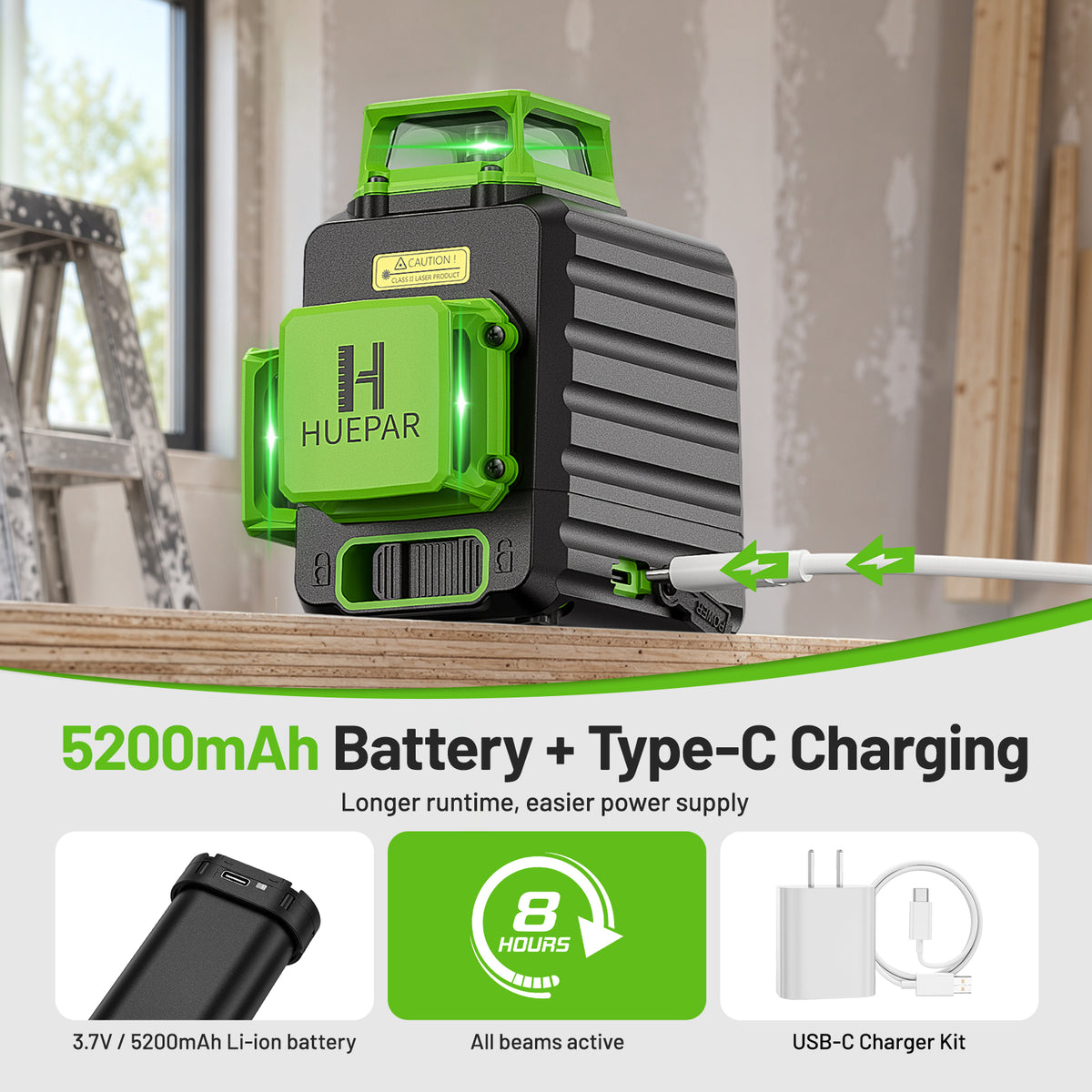

  • 【Dual Power Methods & Type-C Charging Port】: Huepar B03CG Laser Level employed a large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time. The lithium battery comes with a Type-C charging port that can be charged separately. When taking out the battery, the laser tool can be used at the job site by plugged in. 4 battery indicators on the keypad allow users to know the current battery volume and charging protection helps prevent from overcharging.
  • 【Brighter Green Laser & Outdoor Pulse Mode】: This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. At the same power, the green laser is twice bright as the red laser, with a working range up to 85 feet (300LUX) of accuracy within ±1/9 Inch at 33 Feet. The outdoor pulse mode can be activated by pressing the Pulse Mode Button, allowing to extend the laser range up to 200 feet with Huepar Line Laser Detector.

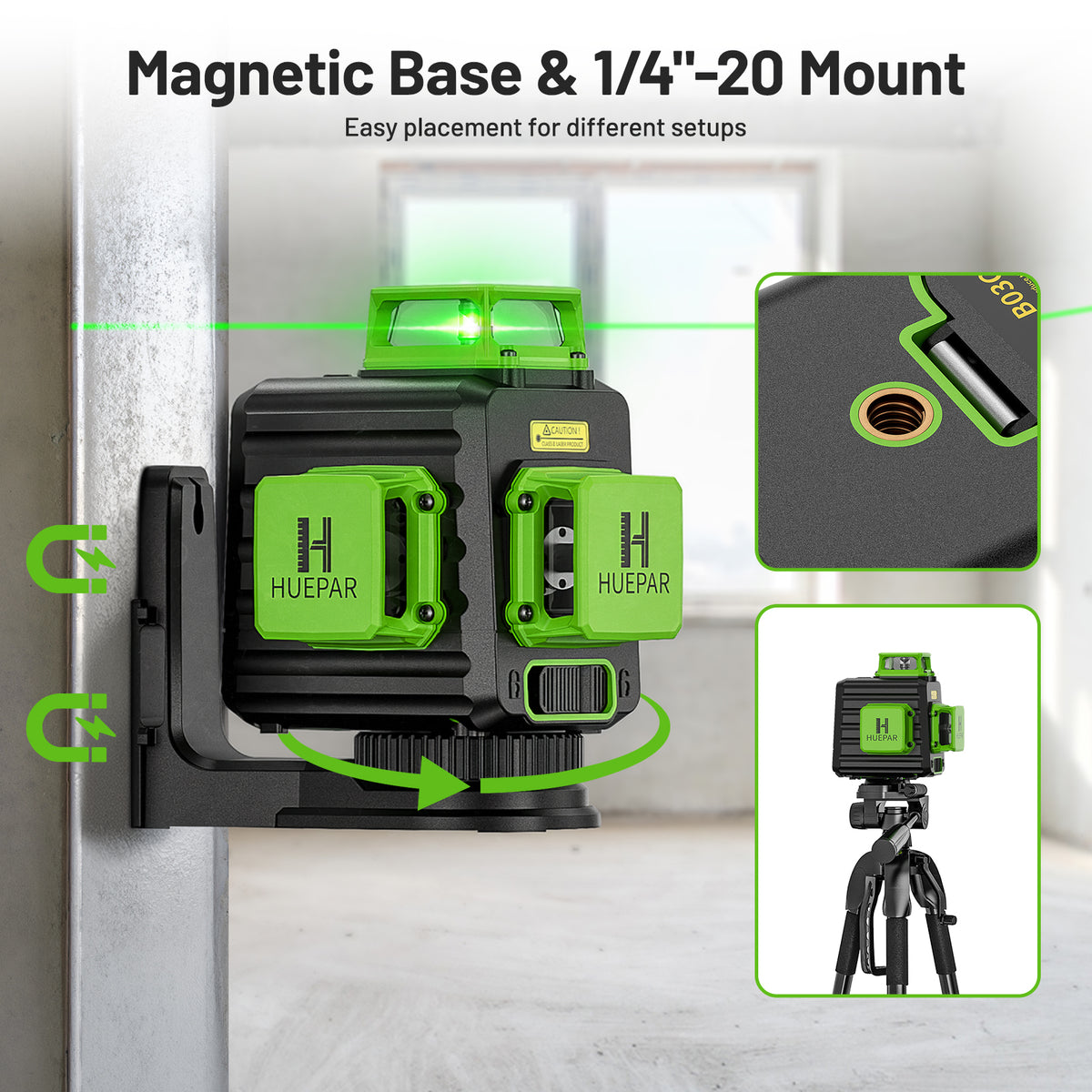

  • 【More Installation Methods】: The laser level comes with 1/4"-20 thread to suit for standard tripod or laser mounting pole. Equipped with a magnetic pivoting base, the laser tool can be rotated to the required angle. And the 1/4"-20 & 5/8"-11 mounting threads help mount it to different tripod threads. Two strong magnets allow for attachment to metal track and steel. Two nail holes for more fixing methods when working. The laser windows can be removed and replaced with a screwdriver.
  • 【Durable Design & Package Contents】: The laser tool is completely covered by TPR soft rubber, which delivers soft touch and stronger protection. IP54 water/dust resistance ensures you work well in hazardous working conditions. The kit comes with a hard carry case bringing much more convenient to carry and store the laser tool. Package includes Laser level, Li-ion battery with type-c charging port, Magnetic bracket, Type-C power cord, Power adapter, Target plate, User manual.



B03CG 3 x 360 Green Laser Level Specifications:

  • Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
  • Laser Wavelength: 505-520nm
  • Horizontal/Vertical Accuracy: +/- 1/9 inch at 33Ft
  • Leveling/Compensation Range: +/-4°
  • Working Distance (Line): 130Ft (100 LUX), 200Ft with Huepar Receiver LR-5RG/LR-6RG
  • Operating Time: 6 hours continual use with all laser beams on
  • Power Source: 5200mAh Li-ion battery
  • IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough
  • Operation Temperature Range: 14℉ ~ 122℉ (-10℃~ 50℃)
  • Storage Temperature Range: -4℉ ~ 158℉ (-20℃~ 70℃)
  • Mount Size: 1/4"-20

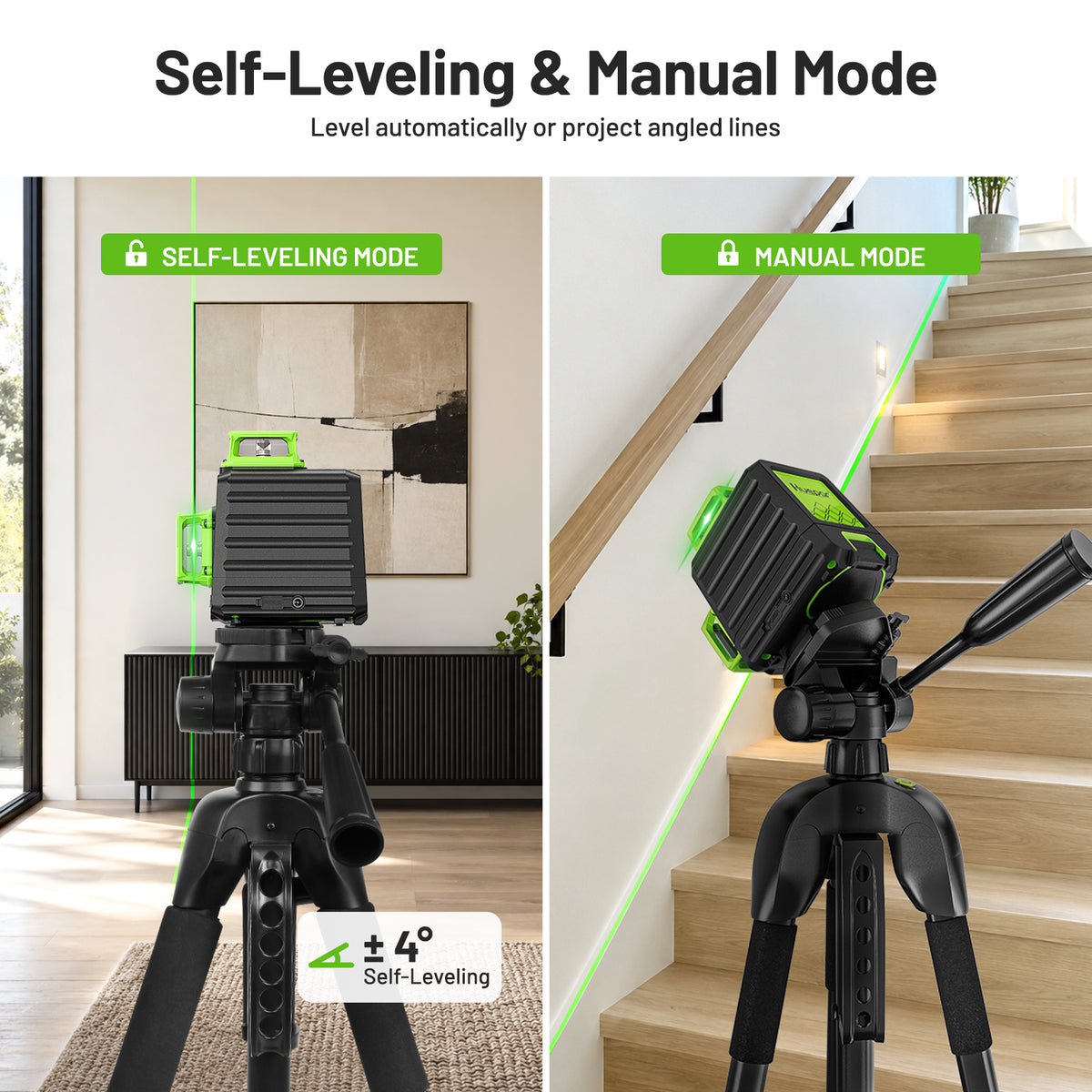

Self-leveling Mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.

The laser beam will flash when the tool is beyond self-leveling range ± 4°.

Manual / Tilt Mode:

When the pendulum locked, the laser tool can be placed for alignment at any angle.

The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.

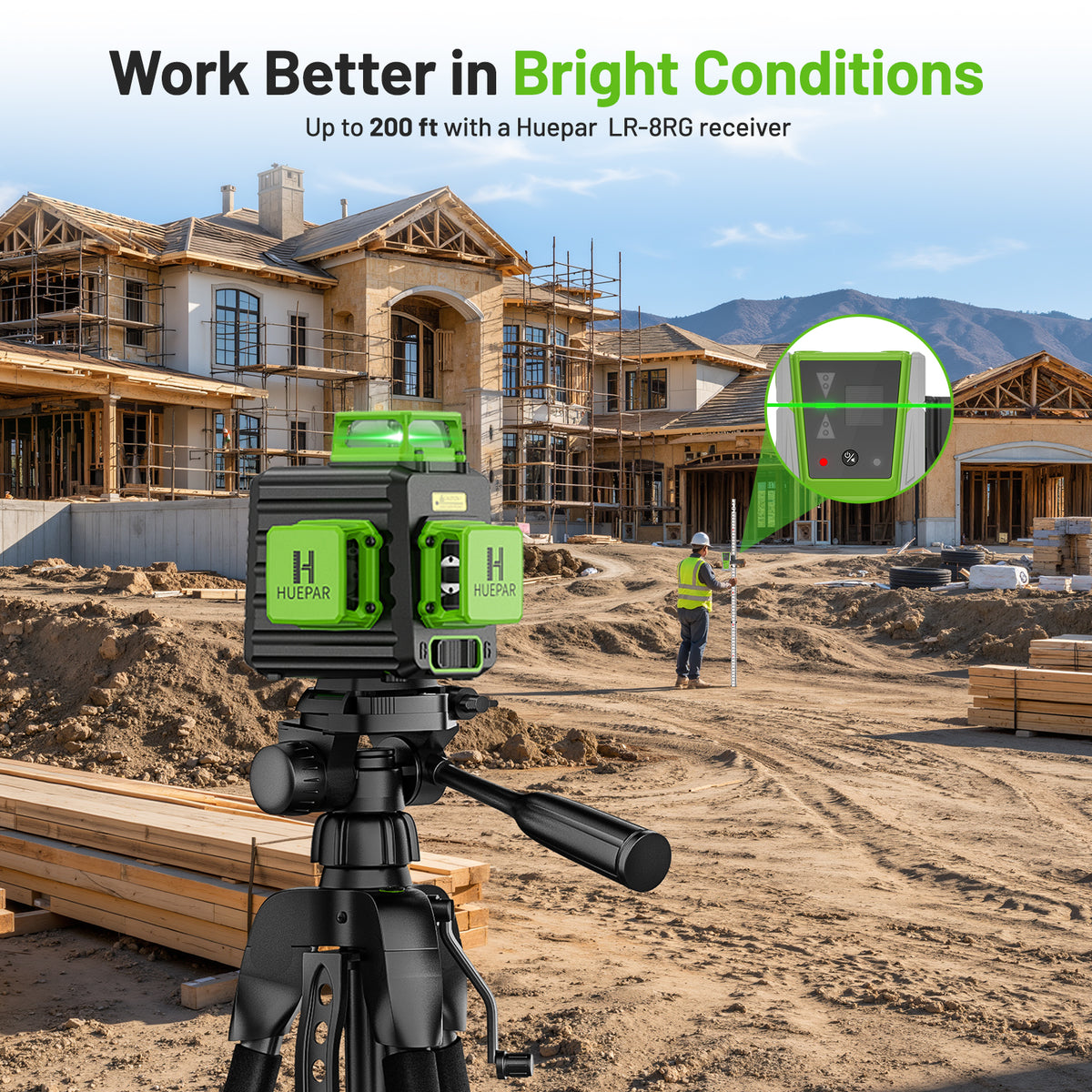

Power-saving Outdoor Pulse Mode:

  • Turn ON the pulse mode: After power ON, short press "P" button to switch ON/OFF the pulse mode.
  • Pulse mode extends the working range up to 200 feet in brighter working conditions when using with Huepar Line Laser Detector
  • When the pulse mode is activated, the laser beams are dimmer, the pressure on eyes is less when working at close range, and the working time can be appropriately extended
  • It is compatible with Huepar LR-6RG / LR-5RG Line Laser Receiver(need to purchase separately) only.
  • Keep the pulse mode on when using with a receiver.



Diverse Power Supply

Large-capacity lithium battery: 6 hours of extra-long working are available.

Direct input charging: This laser tool can be used at job site with direct input charging even if take out the battery.

Charging protection help prevent the tool from overcharge.




Practical and Durable

The kit comes with a hard carry case that brings much more convenience to carry and store of the laser level.

The overall TPR soft rubber housing as well as compact design makes the laser tool more durable and portable.

This laser offers a 1/4"-20 mounting thread for being fixed on mount or tripod.

Strong Magnetic L mount allows for attachment to metal track and steel, supporting users to operate the laser level at 360 degree.

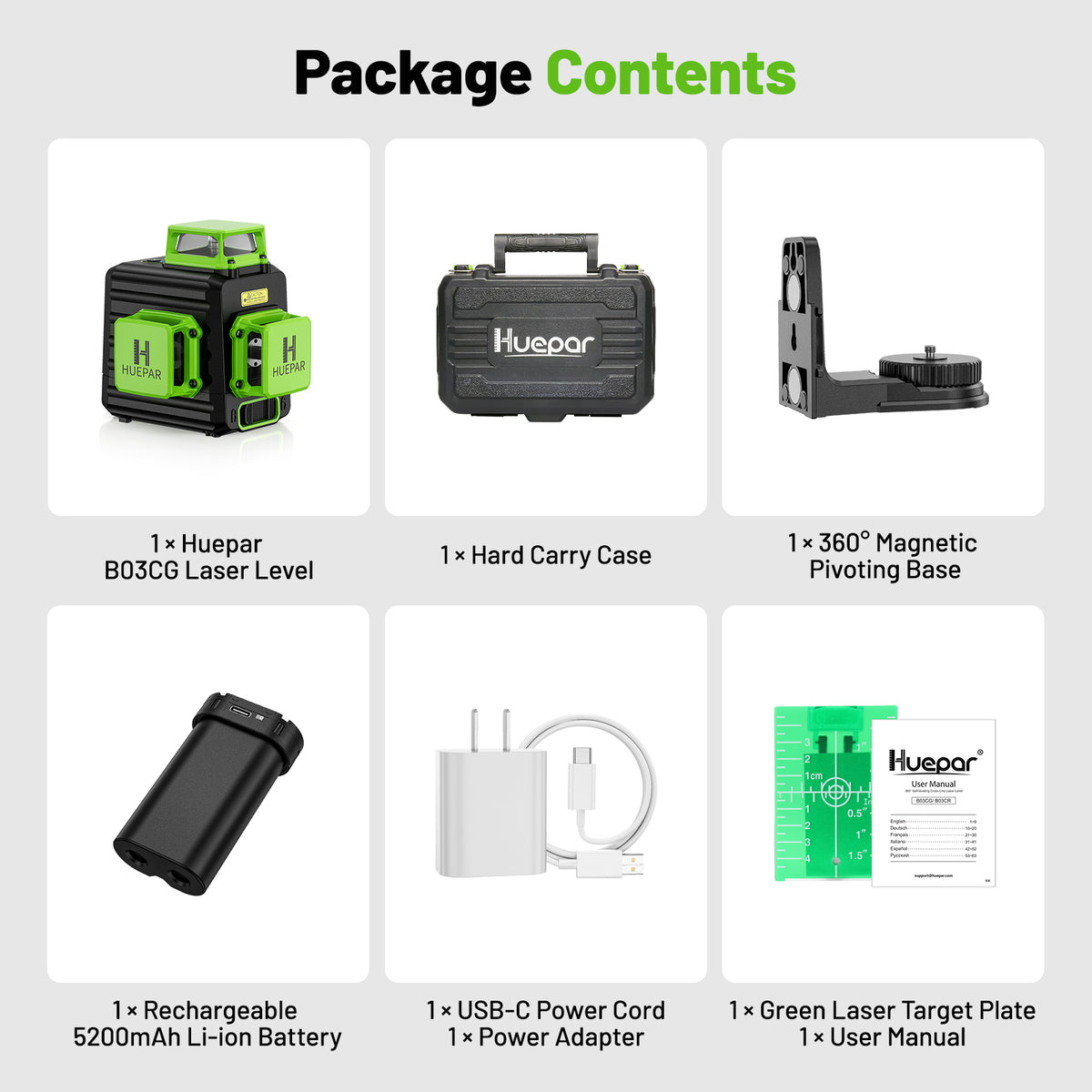

Package Contents:

  • 1 x Huepar B03CG Green Beam Self-Leveling 3D Cross Line Laser Level
  • 1 x 360° Magnetic Pivoting Base
  • 1 x Rechargeable Lithium Battery
  • 1 x Type-C Power Cord
  • 1 x Power Adapter
  • 1 x Laser Target Plate
  • 1 x User Manual
  • 1 x Hard Carry Case



Product information

Technical Details
Part Number 001
Item Weight 2.99 Kg
Parcel Dimensions 28.8 x 20.6 x 11.8 cm
Manufacturer reference 001
Color verde
Power Source battery-powered
Item Package Quantity 1
Batteries Required? No
