Take a Closer Look

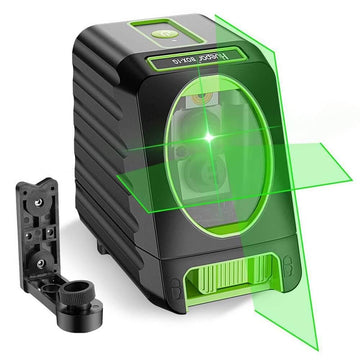

HIGH ACCURACY&CROSS-LINE LASER: This outdoor laser level adopts an ultra-bright green beam with ± 1/13 inch at 33Ft high accuracy. It projects one 130° Horizontal and one 150° Vertical line for a wide array of leveling and alignment applications. This laser tool is ideal for paving tiles, installing photos, doors, windows, or furniture carpentry, hanging wallpaper, etc.
MULTIFUNCTIONAL LASER TOOL: Users can select Crosslines, Horizontal or Vertical line by one-button operation. With a smart pendulum system, this outdoor laser level self-levels and indicates out-of-level conditions while the pendulum unlocked. Once the pendulum locked, it switches to manual mode to lock lines for alignment at any angle. Pulse mode extends the working range up to 150Ft with Huepar laser receiver in bright light or outdoor conditions.
LONGER WORKING TIME: Huepar laser tool employed 4 AA alkaline batteries for a longer working time. The outdoor laser level will work for 5 hours while all laser beams on with totally new batteries. It is recommended to replace with large-capacity rechargeable batteries or alkaline battery above 1500mAh for each.
MAGNETIC BRACKET&DURABLE DESIGN: The included strong magnetic L shape bracket allows for attachment to metal surfaces and turns the laser level around 180°. The laser tool also offers1/4"-20 mounting threads to suit standard tripod or laser pole mounts. Besides, the overall TPR soft rubber housing, as well as compact design, makes the laser tool more durable and portable.
KIT CONTENTS&WARRANTY: This line laser level kit comes with BOX-1G laser level tool, 180°L shape magnetic pivoting base, 4 AA batteries, portable pouch, laser target plate, user manual. One-year warranty can be extended to two years if registered as a royal customer (Guides offered on the package box).
BOX-1G Laser Level Specifications:
- Laser Class: Class 2 (IEC/EN60825-1/2014), output power <1mW
- Laser Wavelength: 510±5 nm
- Leveling Accuracy: ± 1/13 In. at 33 Ft
- Horizontal/Vertical Accuracy: ± 1/13 In. at 33 Ft
- Leveling/Compensation Range: 4°±1°
- Working Distance with Huepar Receiver: 165Ft
- Operating Time: 4 hours with all laser beams on
- Power Source: 4×˝AA˝ (LR6), it is recommended to use a large capacity (rechargeable) battery.
- IP Rating: IP54, waterproof, dustproof and shockproof, reliable and tough
- Operation Temperature Range: -10℃-＋50℃
Three kinds of circuit switching functions:
- This professional cross-line laser includes vertical, horizontal, and cross-line modes, which can project two lines independently or together. The Huepar BOX-1G has a manual mode that allows the user to lock the cross-line, to use the tool at any angle.
- Each time the power button is pressed once, the laser level projects horizontal lines, vertical lines, and cross lines in sequence.
- 130° cover horizontal line and 150° vertical line (H130°/V150°)
Self-leveling mode & Manual mode
Unlock the pendulum, self-leveling mode is enabled. The laser beam will blink continuously at 2Hz when the tool is beyond self-leveling range (4°±1°).
Lock the pendulum, you can place the laser tool at various angles to project non-level straight laser lines. The laser beam will blink every 3-5 seconds to remind you that it's not self-leveling now.
Turn ON pulse mode: Slide the pendulum to the Unlocked Position, then press and hold the power button to turn on the pulse mode, the indicator lights up in red.
Application：When the pulse mode turned on, laser tool can be used with a laser receiver to work in brighter conditions or a larger working distance.
Note: ●When using a receiver, it’s necessary to turn on the pulse mode ●It is compatible with Huepar Line Laser Receiver only.
Huepar's laser tools can help you work effectively in home decoration, wall building, bridge construction, engineering construction, railway construction, etc. It is very suitable for home use.
Various kinds of fixing method
Strong Magnetic L mount with triop thread can attach the laser to any steels easily, turning around 180-degree as you like.
It can also accept a standard tripod screw to do height adjustment.
Items in the Package
- 1* Huepar Box-1G green outdoor laser level
- 1* 360 Degree Rotating Base
- 1* Target plate
- 4* AA Batteries
- 1* Pouch
- 1* Multi-language User's Manual
