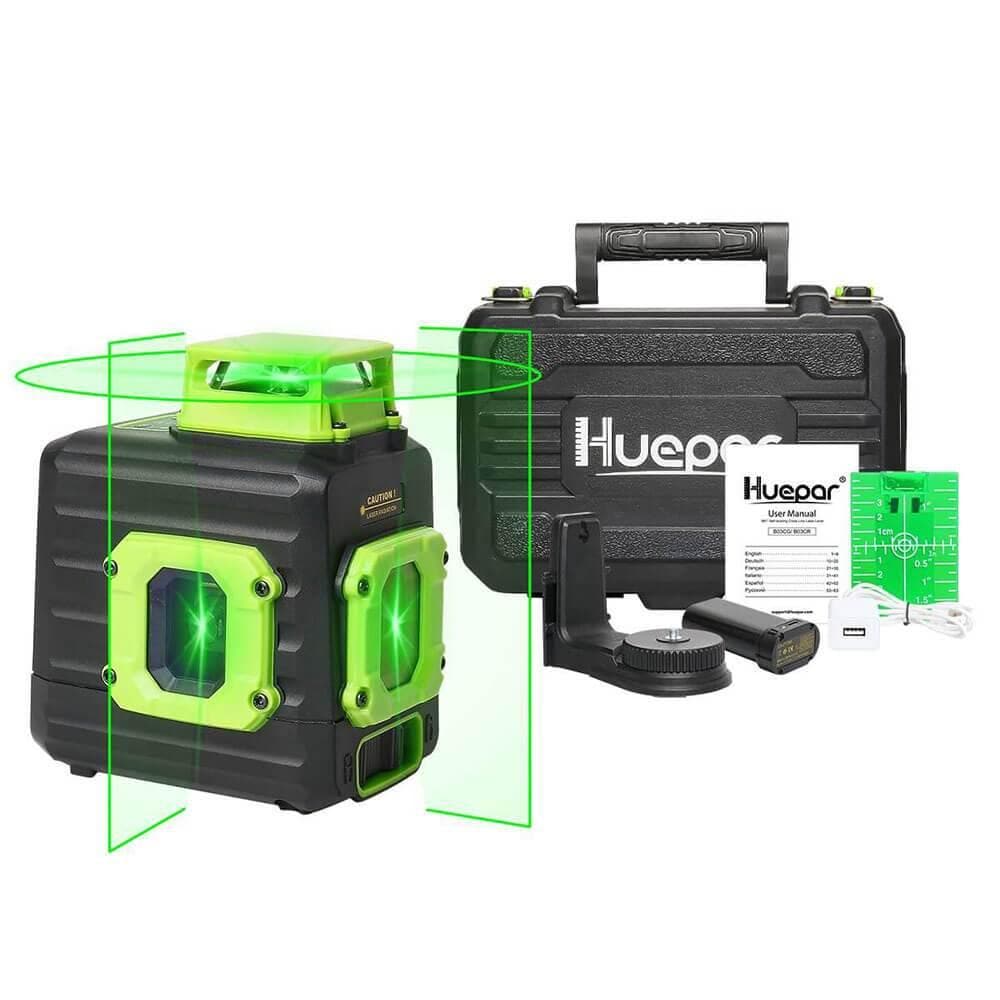

Huepar Cross Line Laser Level, Li-ion Battery with Type-C Charging Port & Hard Carry Case Included - B21CG

Huepar

55 items left


WHY HUEPAR --- We Continue To Commit ACTION


-Adopt the latest technology to take the product quality to the next level
-Consistently provide on-time services to our customers
-Train and develop talented people with strong work ethics to deliver effective performance
-Improve and enhance engineering designs to ensure product performance
-Optimize management systems and increase productivity
-Never forget our customer needs



  • 【1H / 2V Multi-line Laser for Wide Application】: The laser level B21CG projects 360° horizontal line and two 120° vertical lines cover the floor, wall, ceiling around the room. The individual and combined laser lines can be selected individually depends on job site applications. With our smart pendulum system, this laser level tool self-levels and indicates out-of-level condition while pendulum unlocked. Once pendulum locked, it switches to manual mode to lock lines for use at any angle.
  • 【Dual Power Methods & Type-C Charging Port】: Huepar B03CG Laser Level employed a large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time. The lithium battery comes with a Type-C charging port that can be charged separately. When taking out the battery, the laser tool can be used at the job site by plugged in. 4 battery indicators on the keypad allow users to know the current battery volume and charging protection helps prevent from overcharging.
  • 【Brighter Green Laser & Outdoor Pulse Mode】: This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability. At the same power, the green laser is twice bright as the red laser, with a working range up to 25m (300LUX) of accuracy within ±3mm at 10m. The outdoor pulse mode can be activated by pressing the Pulse Mode Button, allowing to extend the laser range up to 60m with Huepar Line Laser Detector.

Specifications for Huepar Green Laser Level B21CG:

Laser Beam: Green laser

Projection: One 360° horizontal line + Two 120° vertical line

Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output

Laser Wavelength: 505-520nm

Horizontal / Vertical Accuracy: ±3mm/10m

Leveling / Compensation Range: ±4°

Leveling Time: 3s

Working Distance: 25m (300 LUX), 50-60m with Huepar Laser Detector LR-5RG / LR-6RG

Power Source: 3.7V / 5200mAh Li-ion Battery

Reference Operating Time: About 8 hours with all laser beams on

Mount Size: 1/4"-20

IP Rating: IP54 dust-proof, waterproof and shockproof, reliable and tough

Operation Temperature Range: Between -10℃ and +50℃

Storage Temperature Range: Between -20℃ and +70℃



1 H & 2V Mulit-line Laser Level:

One 360° horizontal and two 120° vertical lines enable users to cover the floor, wall, ceiling all around the room. Two vertical lines to make dividing a room easier.

Short press operation button to switch the laser lines in turn. Longer working time by activating only the laser lines needed for the job.

The horizontal line, vertical lines and combined laser lines can be selected individually depends on job site applications.







Type-C Charging Port:

l This laser tool utilizes the included large capacity of 3.7V / 5200mAh lithium battery and provides up to 8 hours of running time.

l The lithium battery with the Type-C charging port can be charged separately.

l Direct input charging: When taking out the battery, the laser tool can be used at the job site by plugged in.

l Four battery indicators on keypad allow users to know the current battery volume.

l Charging protection helps prevent from overcharging.



More Installation Methods:

l 1/4"-20 female thread on the laser level can help to mount it to the tripod or laser mounting pole.

l 360° Strong Magnetic Pivoting Base: Allows being adsorbed onto metal track and steel. The base provides 360° free rotation to meet different angles required.

l 1/4"-20 and 5/8"-11 mounting threads on the bottom of the bracket for temporary fastening in place or being fixed on tripod or laser mounting pole.

l Replaceable Protective Cover: The laser windows can be removed and replaced with a screwdriver.

l Green Target Plate: Increases the visibility of the laser beam.



Durable Design:

l The laser tool is completely covered by TPR soft rubber, which delivers soft touch and stronger protection.

l The kit comes with a hard carry case bringing much more convenience to carry and store the laser tool.

l IP54 water/dust resistance ensures you work well in hazardous working conditions.



Bright Green Laser Diode:

l This cross line laser adopts the bright Osram’s green laser unit, which is resistant to temperature changes and has higher stability.

l At the same power, the green laser is twice bright as the red laser, with a working range up to 25m (300LUX) of accuracy within ±3mm at 10m.



Package Contents:

l 1 x Huepar B21CG Laser Level

l 1 x Rechargeable Lithium Battery 3.7V / 5200mAh

l 1 x Type-C Power Cord

l 1 x Power Adapter

l 1 x 360° Magnetic Pivoting Base

l 1 x Green Laser Target Plate

l 1 x Multilingual User Manual

l 1 x Hard Carry Case

l The laser windows can be removed and replaced with a screwdriver.
